Some "kickstart" help with patch

hi. i need to get over some initial hurdles with understanding PD with Organelle. it’s the code connections to the Organelle hardware i guess i struggle with

could someone please explain to me why this patch won’t make the organelle into a simple left right panner for a mono in signal?

It’s really hard to tell, cause we can’t see what’s inside of the mixer. But if anything is correctly connected inside the mixer I don’t see why this would not work :slight_smile: (1.0 KB)
It’s kind of working (only pans Left, don’t know why).
In Automatonism I just couln’t make it work, the panner of the “Organelle Output” object. And found this tutorial.

Screen Shot 2020-12-15 at 4.18.45 PM
and “panner” looks like this:
Screen Shot 2020-12-15 at 4.24.44 PM

I test it both in stereo and mono. Maybe this shows a bit of light. :slightly_smiling_face:

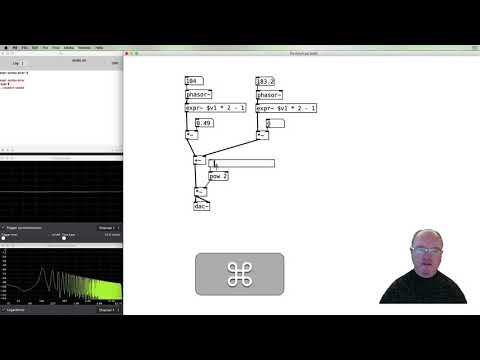

Here’s the video for further reference:

I do panning with this abstraction I made, f2s~ is from else library but can be replaced by $1 50 message and line~

Captura de Pantalla 2020-12-15 a la(s) 23.54.29

panning~.pd (636 Bytes)


The panning object seems to have been edited, a connection is missing. The left side is not connected to the control/pan inlet, so nothing will happen on that side.

Try this:
Screen Shot 2020-12-16 at 21.51.52

This is equal power pan, by the way.
